Avoid Favors Layer
Contents
The Avoid Favors Layer toggles the display of Route Modifiers—road segments designated to be avoided or favored when the route is calculated.
- This setting controls map display only. It does not influence routing logic. The routing algorithm respects all avoid/favors assigned to the
assetIDregardless of whether they are displayed on the map. - Ensure that any modifiers displayed on the map are correctly associated with the active
assetIDto prevent discrepancies between the map and the calculated route.

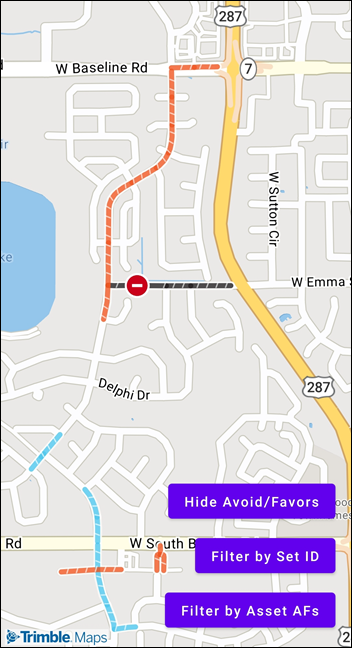

The sample code below shows how to apply the layer. The orange lines are avoids, blue lines are favors, and black lines are closures.
// SampleAvoidFavorsActivity.kt
package com.trimblemaps.mapssdkqatestingproject
import android.os.Bundle
import android.util.Log
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.compose.foundation.layout.*
import androidx.compose.foundation.lazy.LazyColumn
import androidx.compose.foundation.lazy.items
import androidx.compose.material.*
import androidx.compose.runtime.*
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.platform.LocalContext
import androidx.compose.ui.platform.LocalLifecycleOwner
import androidx.compose.ui.unit.dp
import androidx.compose.ui.viewinterop.AndroidView
import androidx.lifecycle.Lifecycle
import androidx.lifecycle.LifecycleEventObserver
import com.trimblemaps.account.TrimbleMapsAccountManager
import com.trimblemaps.api.avoidFavors.v1.AssetAvoidFavors
import com.trimblemaps.api.avoidFavors.v1.TrimbleMapsAvoidFavors
import com.trimblemaps.api.avoidFavors.v1.models.AFSetsResponse
import com.trimblemaps.api.avoidFavors.v1.models.AssetAvoidFavorsResponse
import com.trimblemaps.core.EnvironmentCriteria
import com.trimblemaps.mapsdk.TrimbleMaps
import com.trimblemaps.mapsdk.camera.CameraPosition
import com.trimblemaps.mapsdk.geometry.LatLng
import com.trimblemaps.mapsdk.maps.MapView
import com.trimblemaps.mapsdk.maps.Style
import com.trimblemaps.mapsdk.maps.TrimbleMapsMap
import retrofit2.Call
import retrofit2.Callback
import retrofit2.Response
class SampleAvoidFavorsActivity : ComponentActivity() {
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
// Initialize TrimbleMaps
TrimbleMaps.getInstance(this)
setContent {
MaterialTheme {
AvoidFavorsScreen()
}
}
}
}
@Composable
fun AvoidFavorsScreen() {
var map by remember { mutableStateOf<TrimbleMapsMap?>(null) }
var allSetIds by remember { mutableStateOf<List<Int>>(emptyList()) }
var selectedSetIds by remember { mutableStateOf<Set<Int>>(emptySet()) }
var assetSetIds by remember { mutableStateOf<List<Int>>(emptyList()) }
var isDataLoaded by remember { mutableStateOf(false) }
var isLayerVisible by remember { mutableStateOf(false) }
var showFilterDialog by remember { mutableStateOf(false) }
var errorMessage by remember { mutableStateOf<String?>(null) }
val context = LocalContext.current
// Load set IDs on first composition
LaunchedEffect(Unit) {
val avoidFavors = TrimbleMapsAvoidFavors.builder()
.pageNumber(0)
.pageSize(25)
.build()
avoidFavors.enqueueCall(object : Callback<AFSetsResponse> {
override fun onResponse(
call: Call<AFSetsResponse?>,
response: Response<AFSetsResponse?>
) {
var ids = arrayListOf<Int>()
if (response.body() != null) {
for (set in response.body()!!.afSets()) {
ids.add(set.setID())
}
}
allSetIds = ids
isDataLoaded = true
Log.d("AvoidFavors", "Loaded ${ids.size} set IDs: $ids")
}
override fun onFailure(
call: Call<AFSetsResponse?>,
t: Throwable
) {
Log.e("AvoidFavors", "Failed to load set IDs", t)
isDataLoaded = false
errorMessage = "Failed to load set IDs: ${t.message}"
}
})
val assetAvoidFavors = AssetAvoidFavors.builder()
.vehicleId(TrimbleMapsAccountManager.getAccount()!!.assetId()!!)
.build()
assetAvoidFavors.enqueueCall(object : Callback<AssetAvoidFavorsResponse> {
override fun onResponse(
call: Call<AssetAvoidFavorsResponse?>,
response: Response<AssetAvoidFavorsResponse?>
) {
var ids = arrayListOf<Int>()
if (response.body() != null) {
for (set in response.body()!!.data()) {
ids.add(set.setId())
}
}
assetSetIds = ids
Log.d("AvoidFavors", "Loaded ${ids.size} Asset set IDs: $ids")
}
override fun onFailure(
call: Call<AssetAvoidFavorsResponse?>,
t: Throwable
) {
Log.e("AvoidFavors", "Failed to load asset set IDs", t)
}
})
}
Box(modifier = Modifier.fillMaxSize()) {
// Map View
TrimbleMapView(
modifier = Modifier.fillMaxSize(),
onMapReady = { trimbleMapsMap ->
map = trimbleMapsMap
Log.d("AvoidFavors", "Map ready")
}
)
// Buttons
Column(
modifier = Modifier
.align(Alignment.BottomEnd)
.padding(16.dp),
horizontalAlignment = Alignment.End,
verticalArrangement = Arrangement.spacedBy(8.dp)
) {
Button(
onClick = {
map?.let { m ->
isLayerVisible = !isLayerVisible
m.setAvoidFavorsVisibility(isLayerVisible)
if (isLayerVisible) {
// Apply current filter
if (selectedSetIds.isEmpty()) {
m.setAvoidFavorsFilter(null)
} else {
m.setAvoidFavorsFilter(ArrayList(selectedSetIds))
}
}
Log.d("AvoidFavors", "Layer ${if (isLayerVisible) "shown" else "hidden"}")
}
}
) {
Text(if (isLayerVisible) "Hide Avoid/Favors" else "Show Avoid/Favors")
}
Button(
onClick = { showFilterDialog = true },
enabled = isDataLoaded
) {
Text("Filter by Set ID")
}
Button(
onClick = {
map?.let { m ->
// Enable AF layer is it's not already visible
if (!isLayerVisible) {
isLayerVisible = true
m.setAvoidFavorsVisibility(true)
}
// Apply filter to only show AF Sets for the asset
if (assetSetIds.isEmpty()) {
m.setAvoidFavorsFilter(null)
Log.d("AvoidFavors", "No AFs associated with asset, showing all AFs in account")
} else {
m.setAvoidFavorsFilter(ArrayList(assetSetIds))
selectedSetIds = assetSetIds.toSet()
Log.d("AvoidFavors", "Showing Asset AFs: ${assetSetIds}")
}
}
},
enabled = isDataLoaded
) {
Text("Filter by Asset AFs")
}
}
}
// Filter Dialog
if (showFilterDialog) {
FilterDialog(
allSetIds = allSetIds,
selectedSetIds = selectedSetIds,
onDismiss = { showFilterDialog = false },
onUpdate = { newSelection ->
selectedSetIds = newSelection
showFilterDialog = false
// Apply filter to map
map?.let { m ->
if (selectedSetIds.isEmpty()) {
m.setAvoidFavorsFilter(null)
Log.d("AvoidFavors", "Filter cleared - showing all sets")
} else {
m.setAvoidFavorsFilter(ArrayList(selectedSetIds))
Log.d("AvoidFavors", "Filter applied with ${selectedSetIds.size} set IDs: $selectedSetIds")
}
}
}
)
}
// Error Dialog
errorMessage?.let { message ->
AlertDialog(
onDismissRequest = { errorMessage = null },
title = { Text("Error Loading Set IDs") },
text = { Text(message) },
confirmButton = {
Button(onClick = { errorMessage = null }) {
Text("OK")
}
}
)
}
// Loading Dialog
if (!isDataLoaded && errorMessage == null) {
AlertDialog(
onDismissRequest = { },
title = { Text("Loading") },
text = { Text("Set IDs are loading. Please wait...") },
confirmButton = { }
)
}
}
@Composable
fun TrimbleMapView(
modifier: Modifier = Modifier,
onMapReady: (TrimbleMapsMap) -> Unit
) {
val context = LocalContext.current
val lifecycle = LocalLifecycleOwner.current.lifecycle
val mapView = remember {
MapView(context).apply {
getMapAsync { trimbleMapsMap ->
val position = CameraPosition.Builder()
.target(LatLng(39.987032, -105.105344))
.zoom(13.0)
.build()
trimbleMapsMap.cameraPosition = position
trimbleMapsMap.setStyle(Style.TrimbleMobileStyle.MOBILE_DAY)
onMapReady(trimbleMapsMap)
}
}
}
DisposableEffect(lifecycle) {
val observer = LifecycleEventObserver { _, event ->
when (event) {
Lifecycle.Event.ON_START -> mapView.onStart()
Lifecycle.Event.ON_RESUME -> mapView.onResume()
Lifecycle.Event.ON_PAUSE -> mapView.onPause()
Lifecycle.Event.ON_STOP -> mapView.onStop()
Lifecycle.Event.ON_DESTROY -> mapView.onDestroy()
else -> {}
}
}
lifecycle.addObserver(observer)
onDispose {
lifecycle.removeObserver(observer)
mapView.onDestroy()
}
}
AndroidView(
factory = { mapView },
modifier = modifier
)
}
@Composable
fun FilterDialog(
allSetIds: List<Int>,
selectedSetIds: Set<Int>,
onDismiss: () -> Unit,
onUpdate: (Set<Int>) -> Unit
) {
var tempSelection by remember { mutableStateOf(selectedSetIds) }
AlertDialog(
onDismissRequest = onDismiss,
title = { Text("Select Set IDs to Display") },
text = {
Column(
modifier = Modifier
.fillMaxWidth()
.height(400.dp)
) {
// Select All / Clear All Buttons
Row(
modifier = Modifier
.fillMaxWidth()
.padding(bottom = 8.dp),
horizontalArrangement = Arrangement.spacedBy(8.dp)
) {
Button(
onClick = { tempSelection = allSetIds.toSet() },
modifier = Modifier.weight(1f)
) {
Text("Select All")
}
Button(
onClick = { tempSelection = emptySet() },
modifier = Modifier.weight(1f)
) {
Text("Clear All")
}
}
Divider(modifier = Modifier.padding(vertical = 8.dp))
// Checkbox List
LazyColumn(
modifier = Modifier.fillMaxSize()
) {
items(allSetIds) { setId ->
Row(
modifier = Modifier
.fillMaxWidth()
.padding(vertical = 4.dp),
verticalAlignment = Alignment.CenterVertically
) {
Checkbox(
checked = tempSelection.contains(setId),
onCheckedChange = { checked ->
tempSelection = if (checked) {
tempSelection + setId
} else {
tempSelection - setId
}
}
)
Text(
text = "Set ID: $setId",
modifier = Modifier.padding(start = 8.dp)
)
}
}
}
}
},
confirmButton = {
Button(onClick = { onUpdate(tempSelection) }) {
Text("Update")
}
},
dismissButton = {
Button(onClick = onDismiss) {
Text("Cancel")
}
}
)
}
